INCH-POUND
MS20271E
14 April 2011 SUPERSEDING MS20271D
2 March 2006
DETAIL SPECIFICATION SHEET
JOINT-UNIVERSAL, PLAIN, HEAVY DUTY, WITH LUBRICATION COVER
This specification is approved for use by all Departments and Agencies of the Department of Defense. The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-6193.

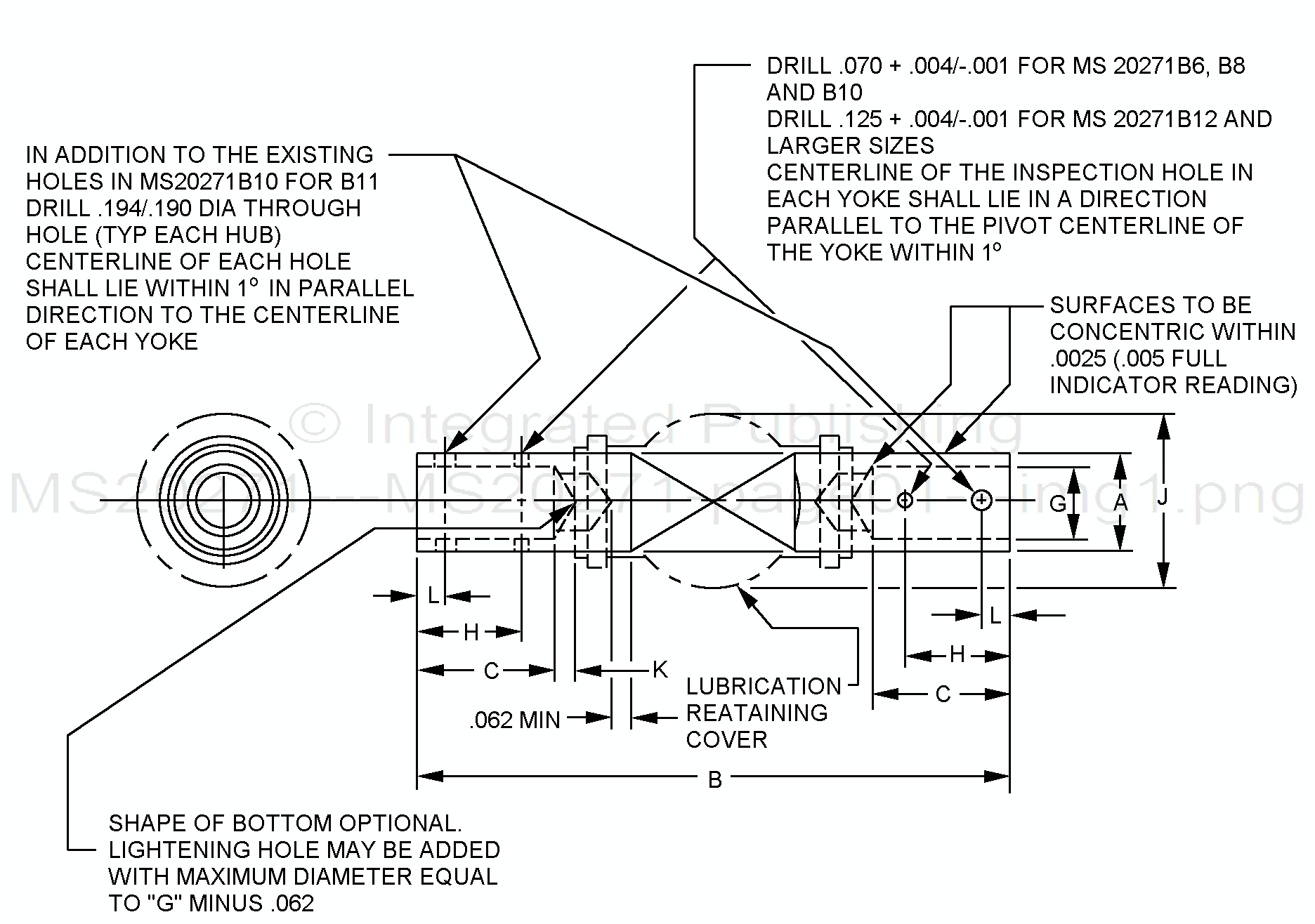

FIGURE 1. Universal joint dimensions and configurations.
AMSC N/A FSC 3010
