[INCH-POUND]
AN4052 Rev 8
13 December 2013
SUPERSEDING
AN4052 Rev 7
10 June 1987
DETAIL SPECIFICATION SHEET
COULPING, SHAFT, RIGID
Inactive for new design
after 22 January 1999
This specification is approved for use by all Departments and
Agencies of the Department of Defense
The requirements for acquiring the product described herein shall consist of this specification
sheet.
inches
mm
.0020
.051
.005
.127
.010
.254
.02
.508
.030
.762
.0780
1.98
.094
2.39
.125
3.18
.644
16.36
.733
18.62
.800
20.32
.873
22.17
1.062
26.97
1.082
27.48
1.127
28,63
1.200
30.48
1.257
31.93
1.438
16.53
1.500
38.1

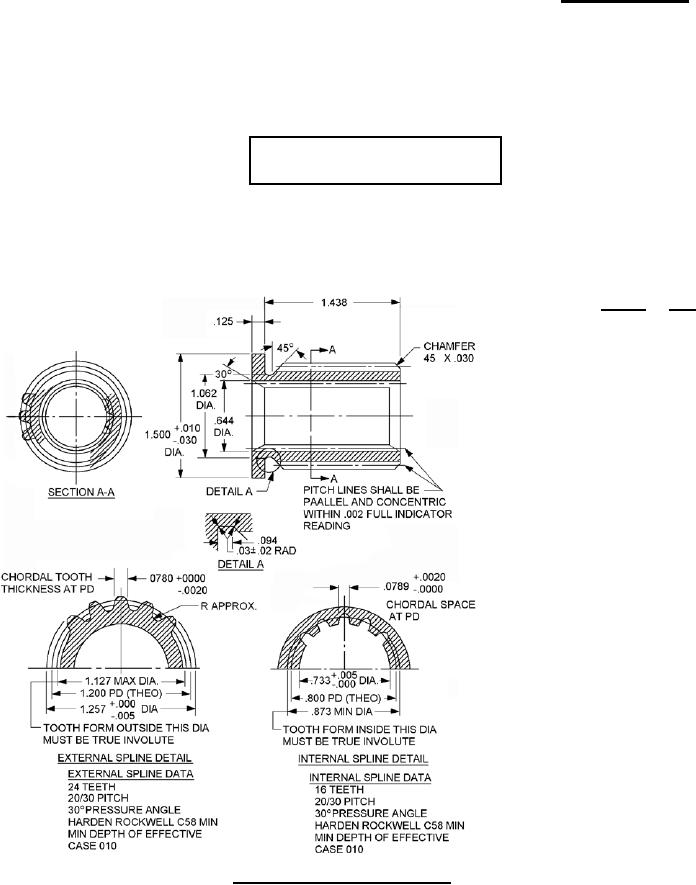

FIGURE 1. Coupling, Shaft, rigid.
AMSC N/A
FSC 3010
