MIL-DTL-6193D
3.5.2 End and side play. When tested as specified in 4.7.2 the play in the joint shall not exceed the
maximum allowable end and side play in table III.
TABLE III. End and side play limits.
Class of
End play
Side play
universal joint
(mm)
(mm)
Class 1
.0035 (0.089)
.0080 (0.020)
Class 2
.0027 (0.069)
.0055 (0.134)
3.5.3 Axial load. Universal joints when tested as specified in 4.7.3 the joint shall support, for 30
seconds -0, +1 second, the axial tension and compression load shown in table II, with angle "A" (see
figure 1) equal to 0°, without any permanent deformation or excessive tightness after the load is removed.
3.5.4 Tightness. Universal joints when tested as specified in 4.7.4, the moment of force required to
move the joint throughout the minimum angle of 30° shall not exceed 0.20 pound-inch ± 2% (2.26 N-m).

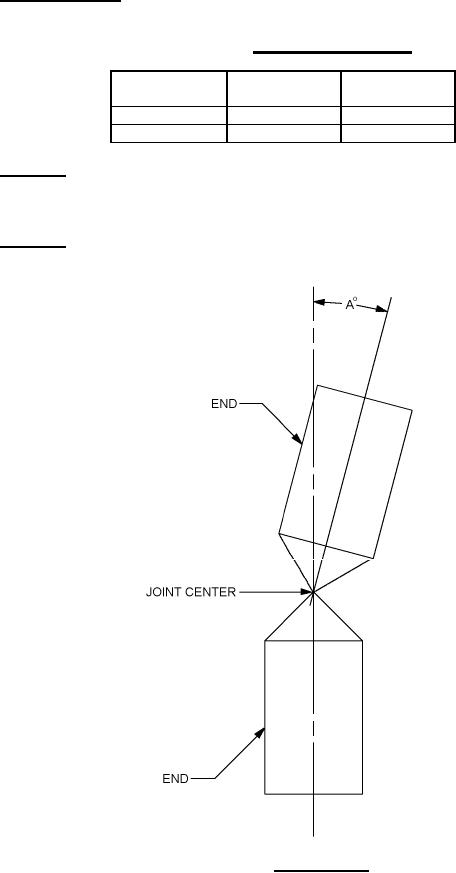

FIGURE 1. Universal joint.
